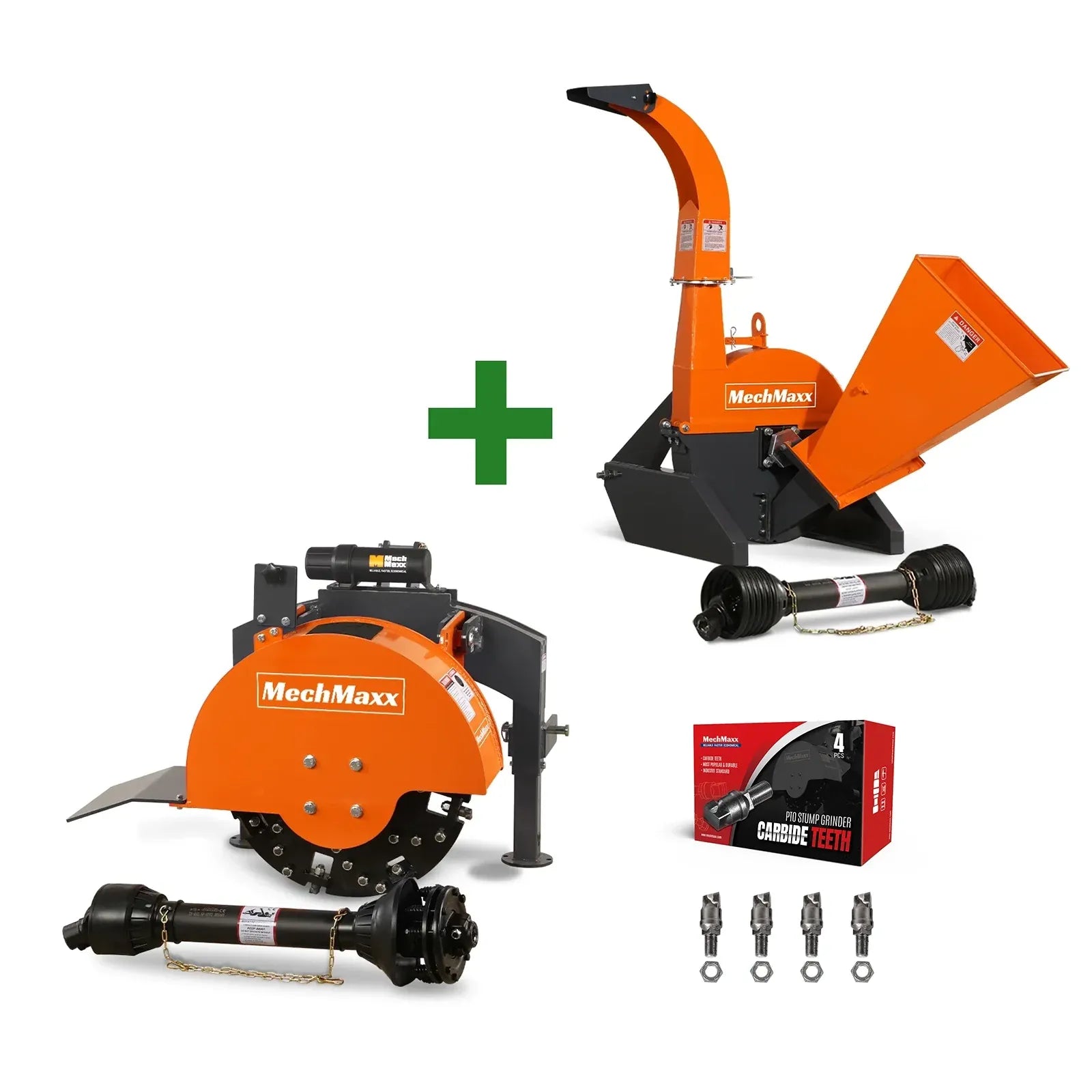

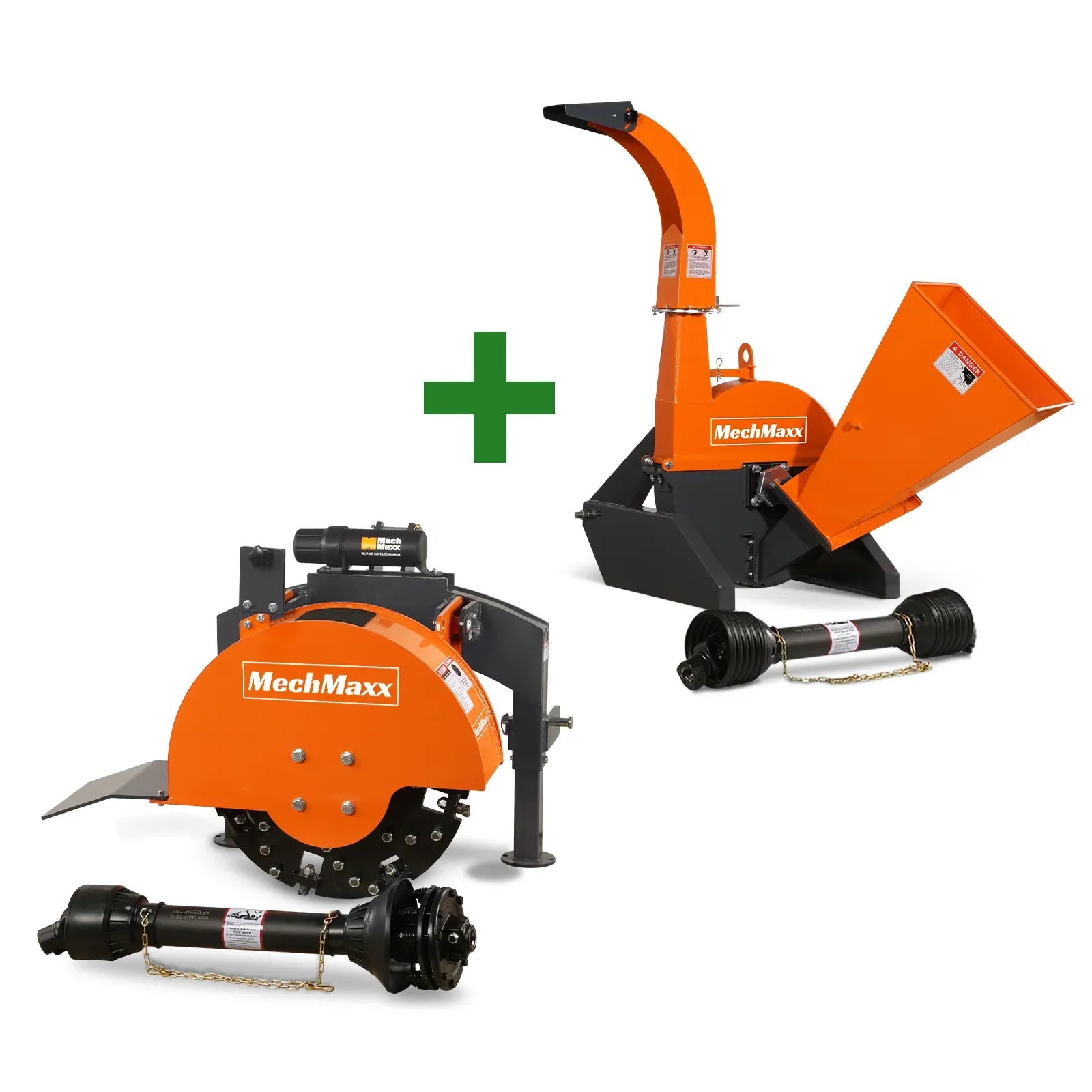

3-Point PTO Stump Grinder & Wood Chipper Combo

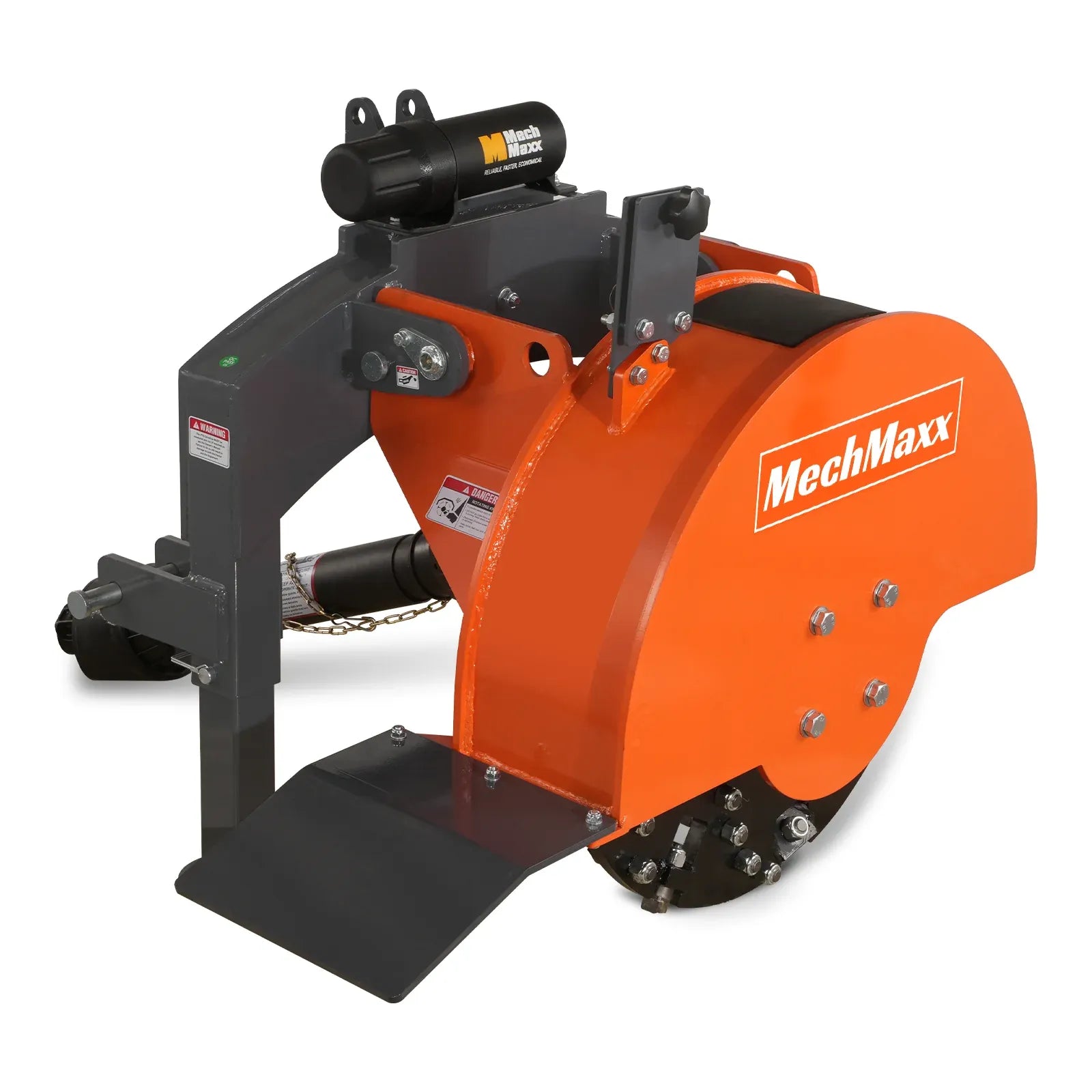

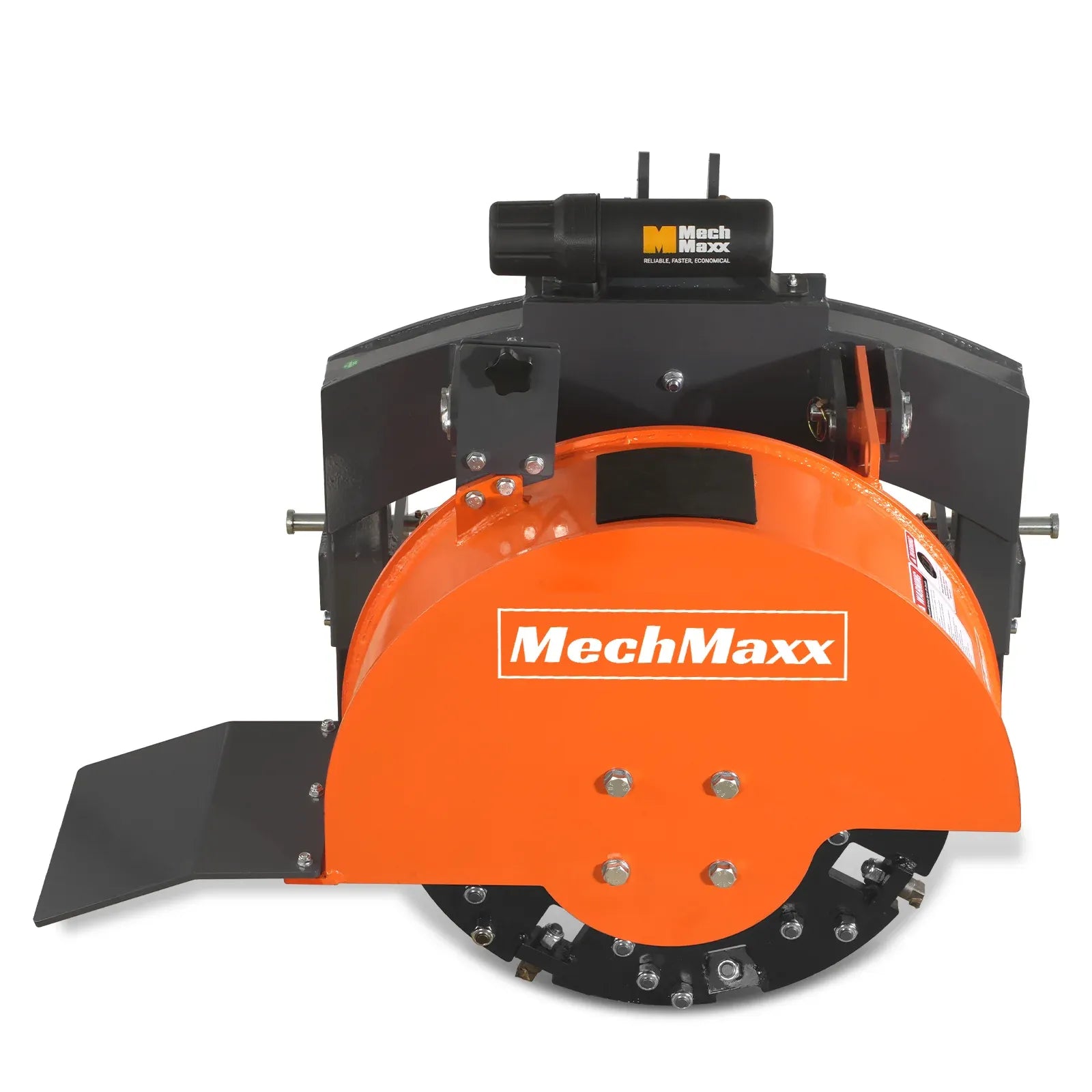

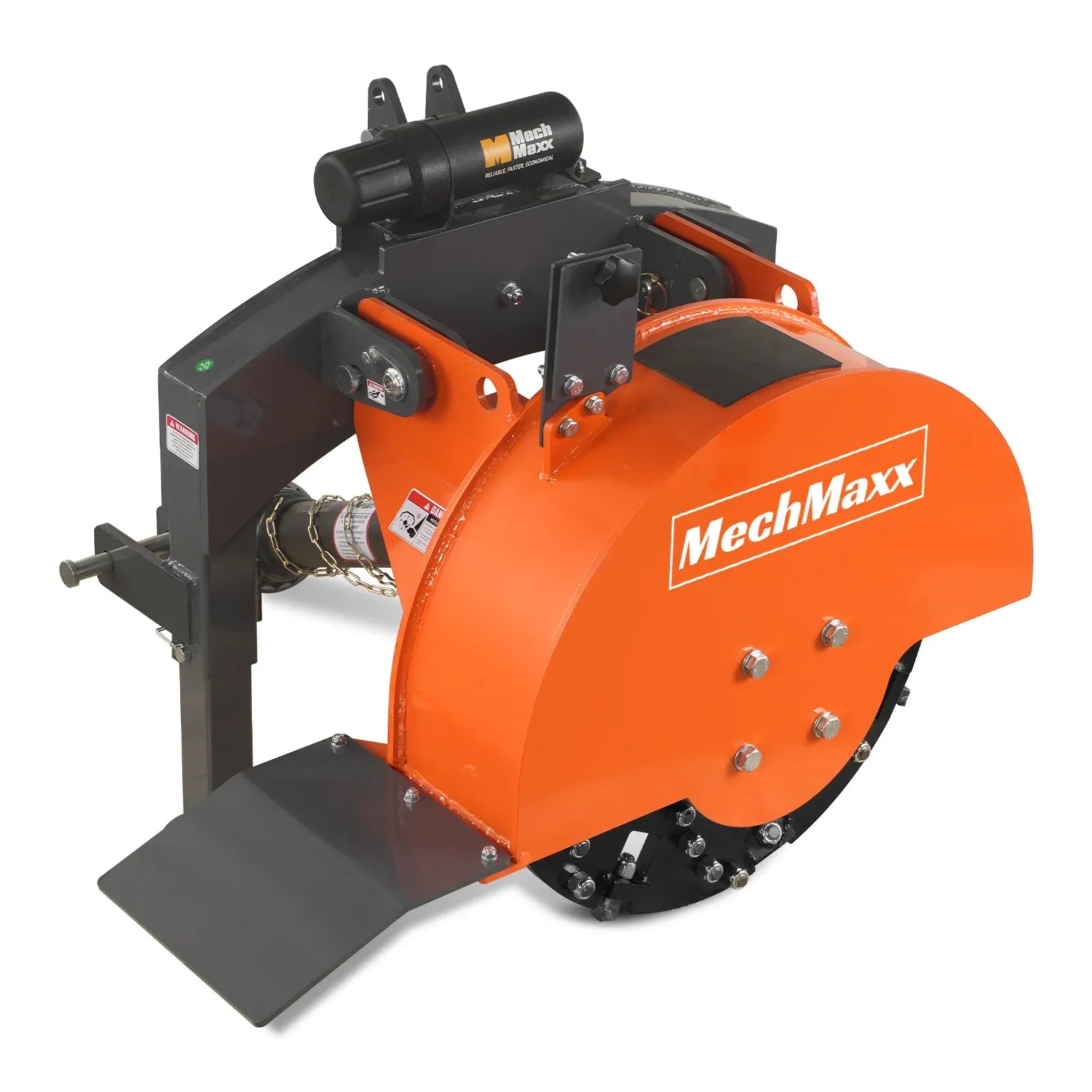

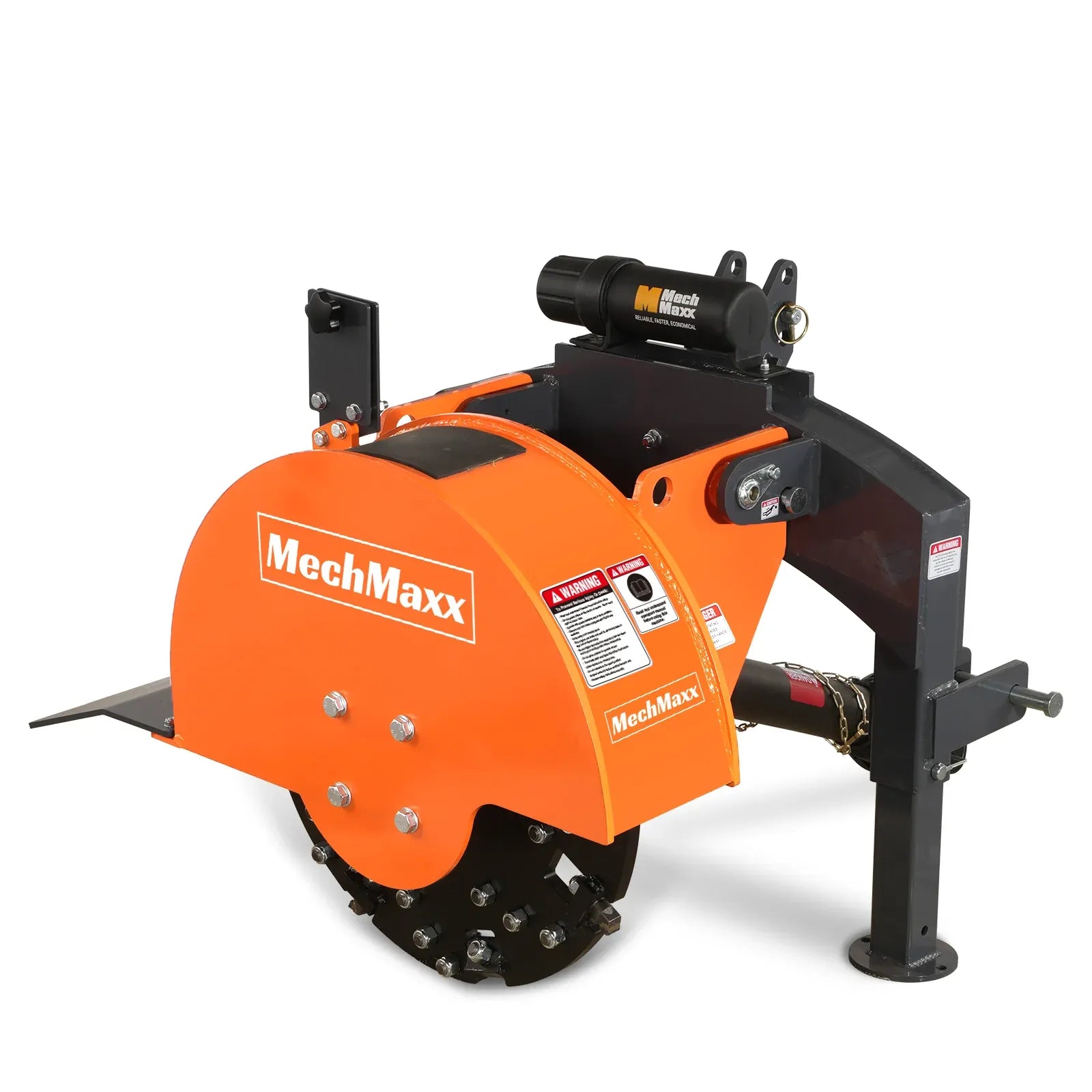

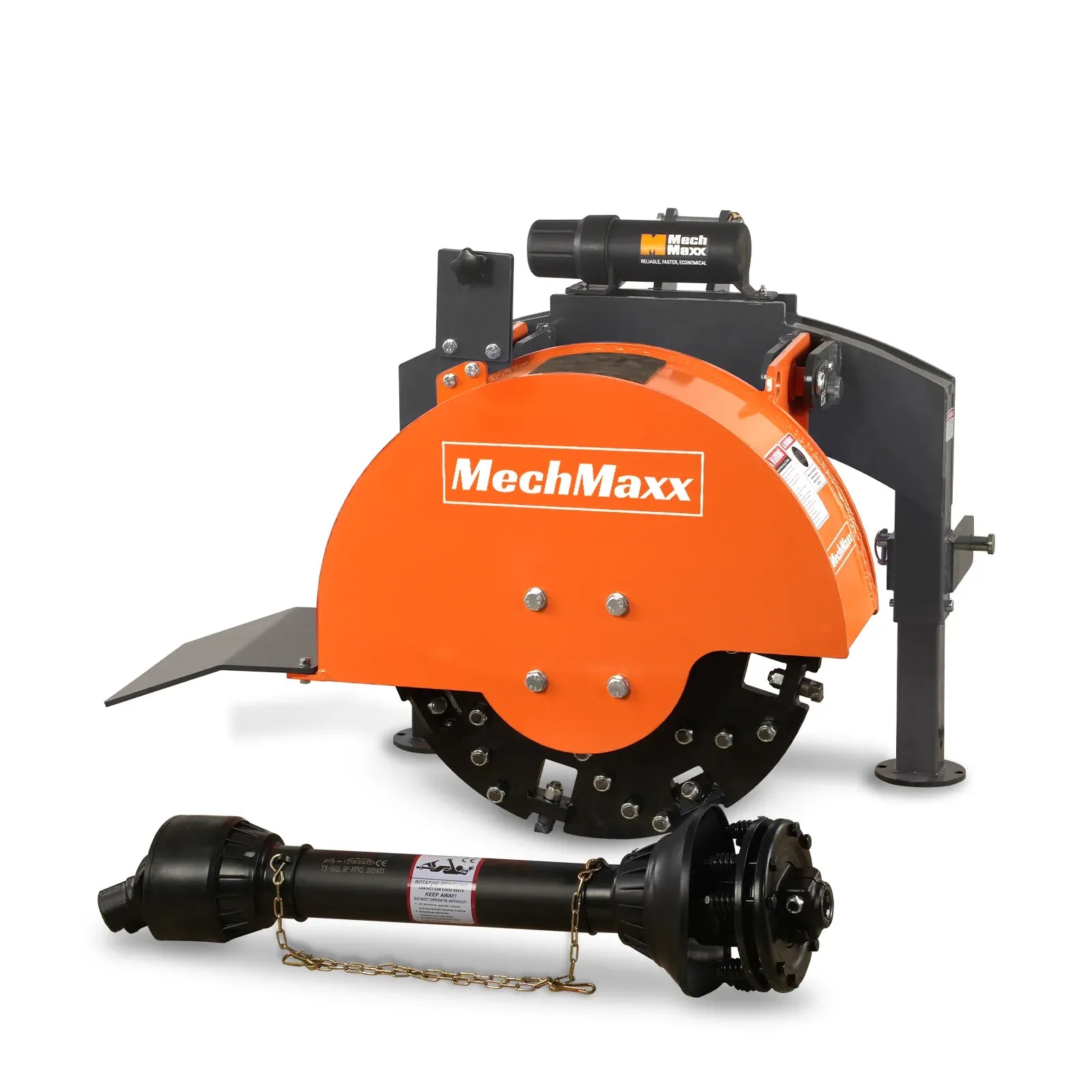

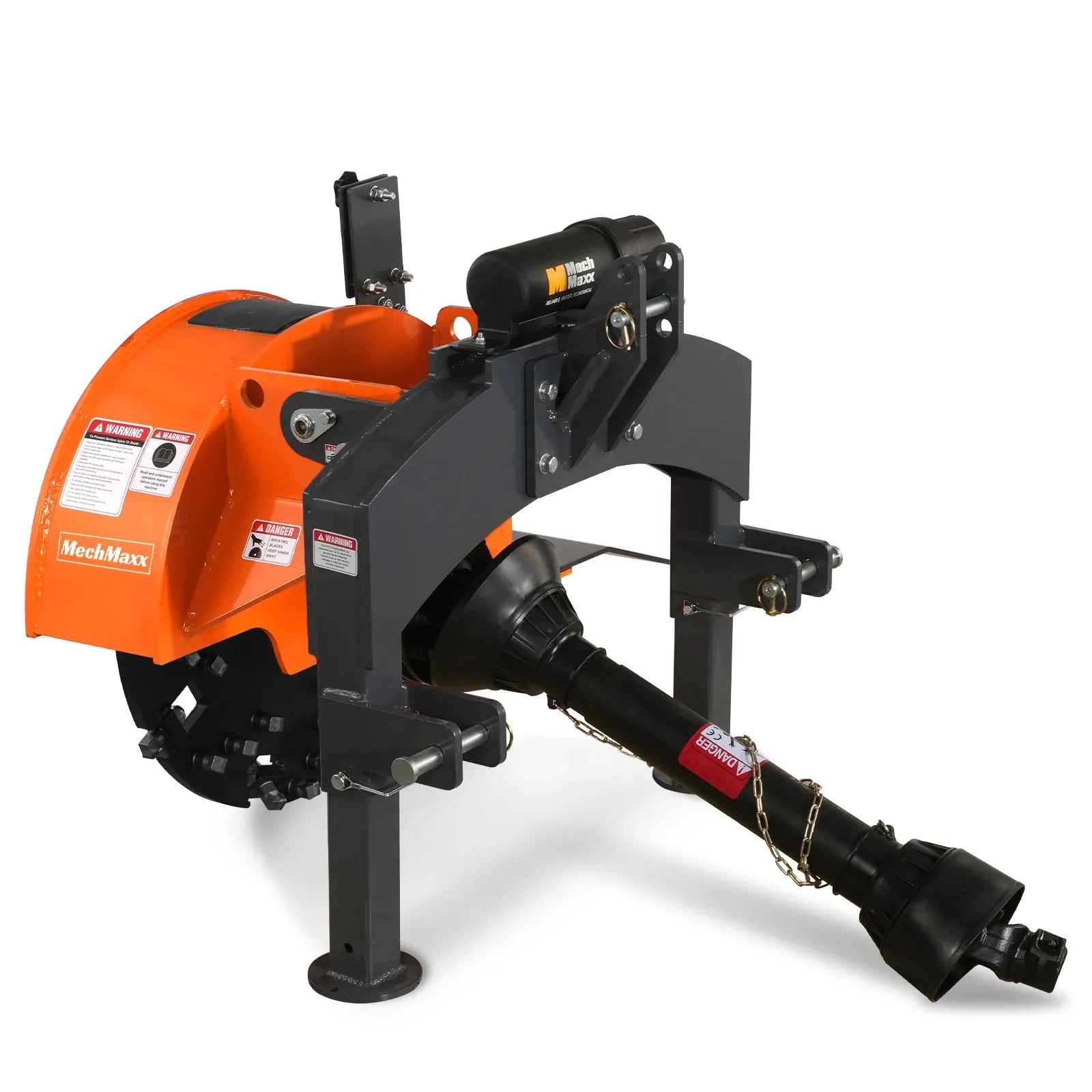

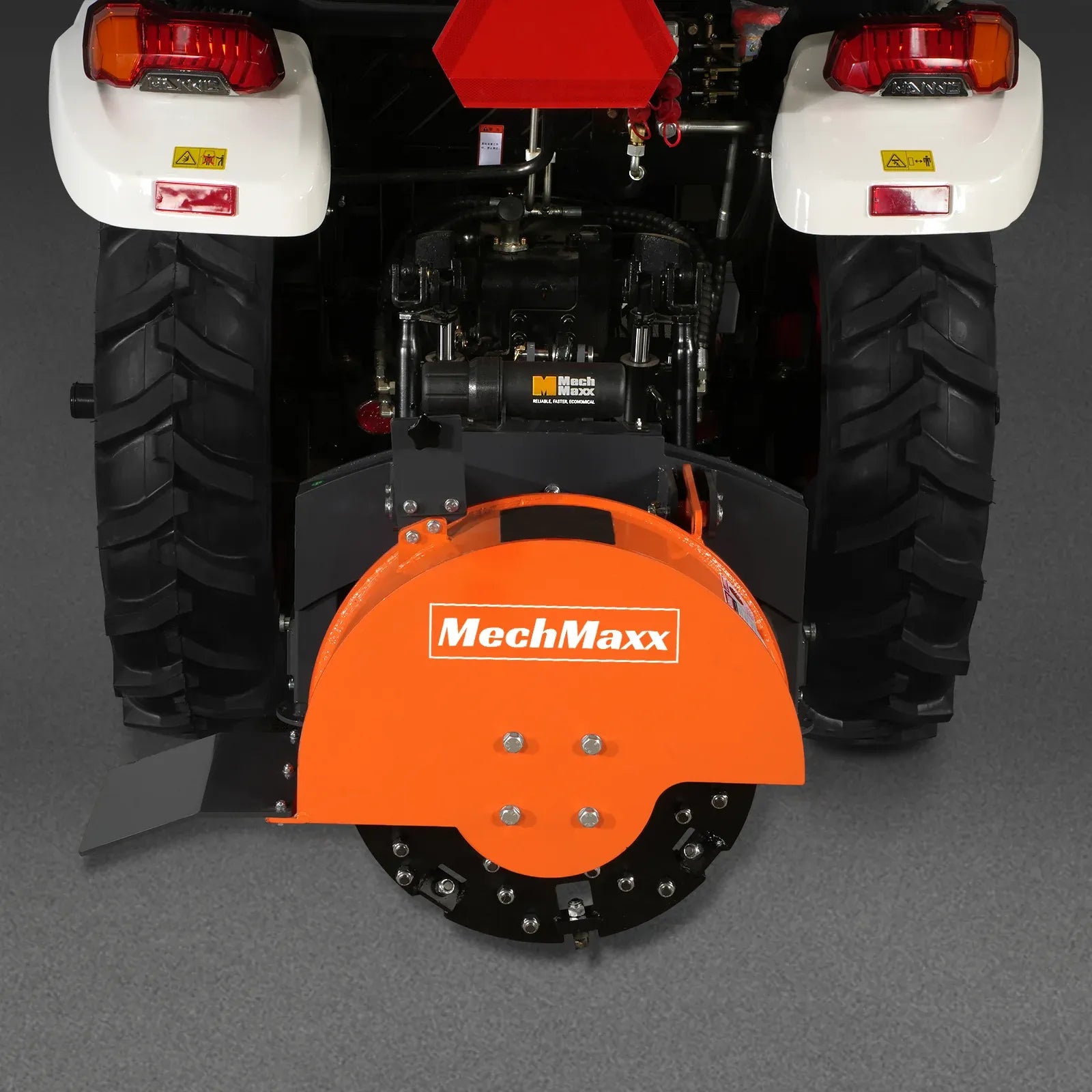

PTO Stump Grinder

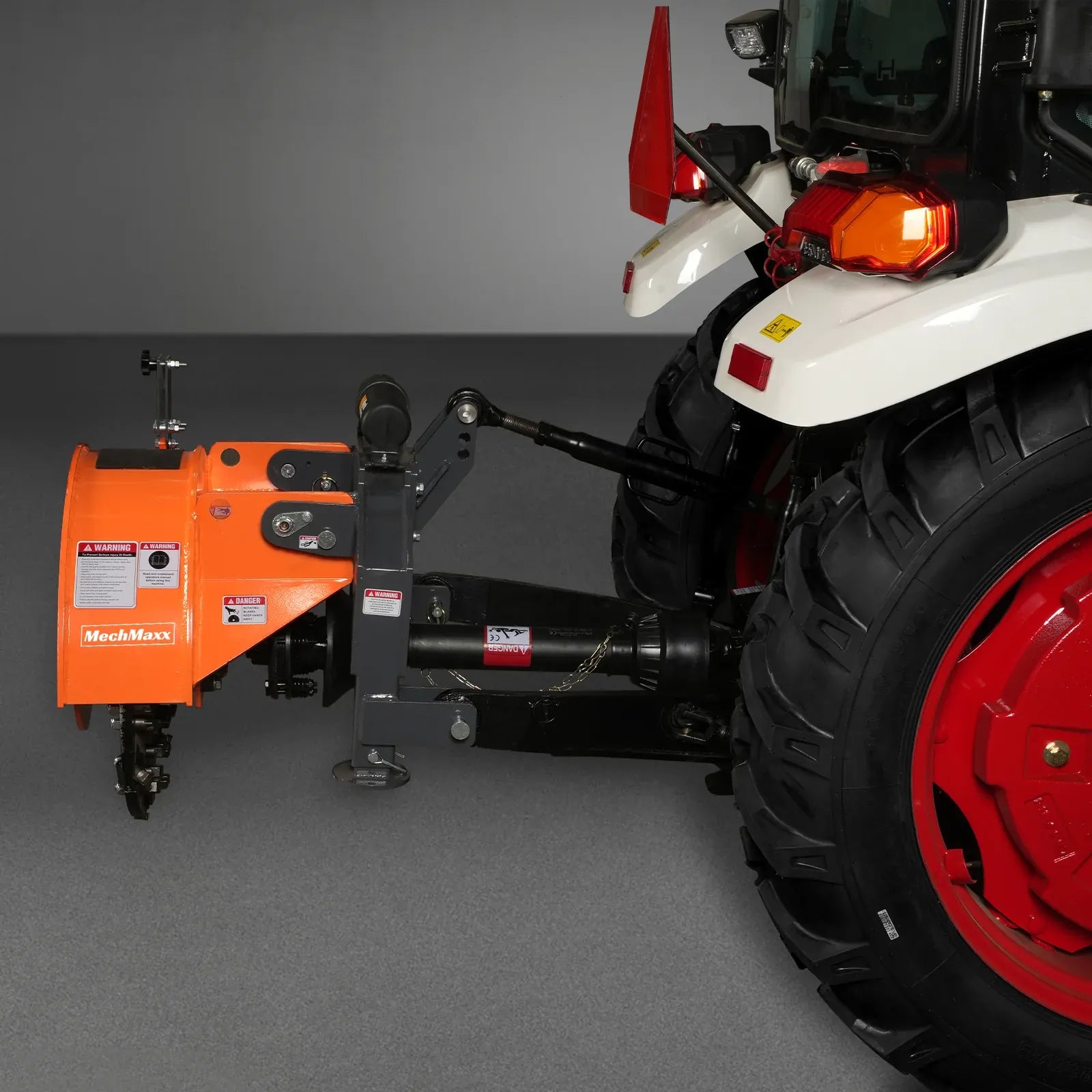

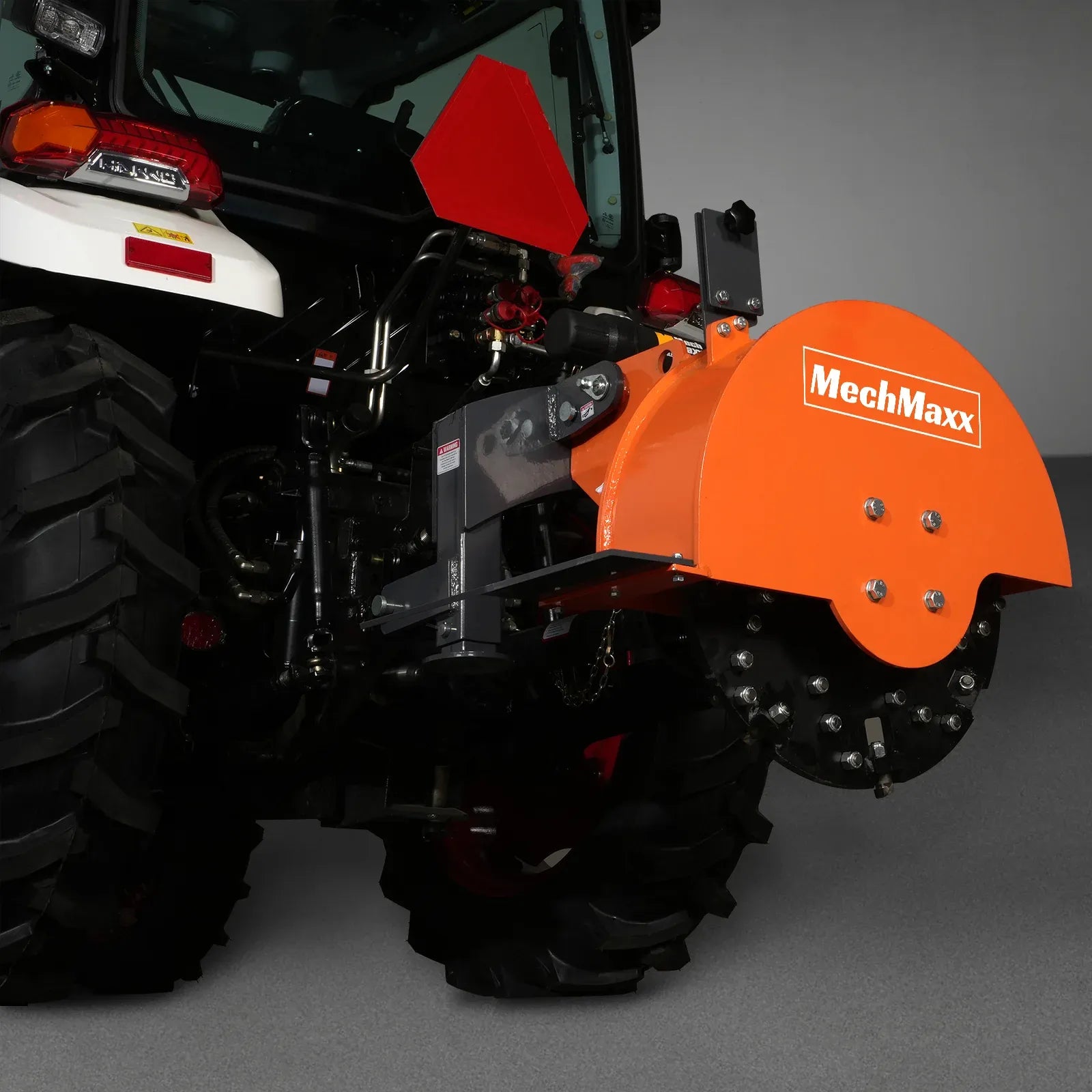

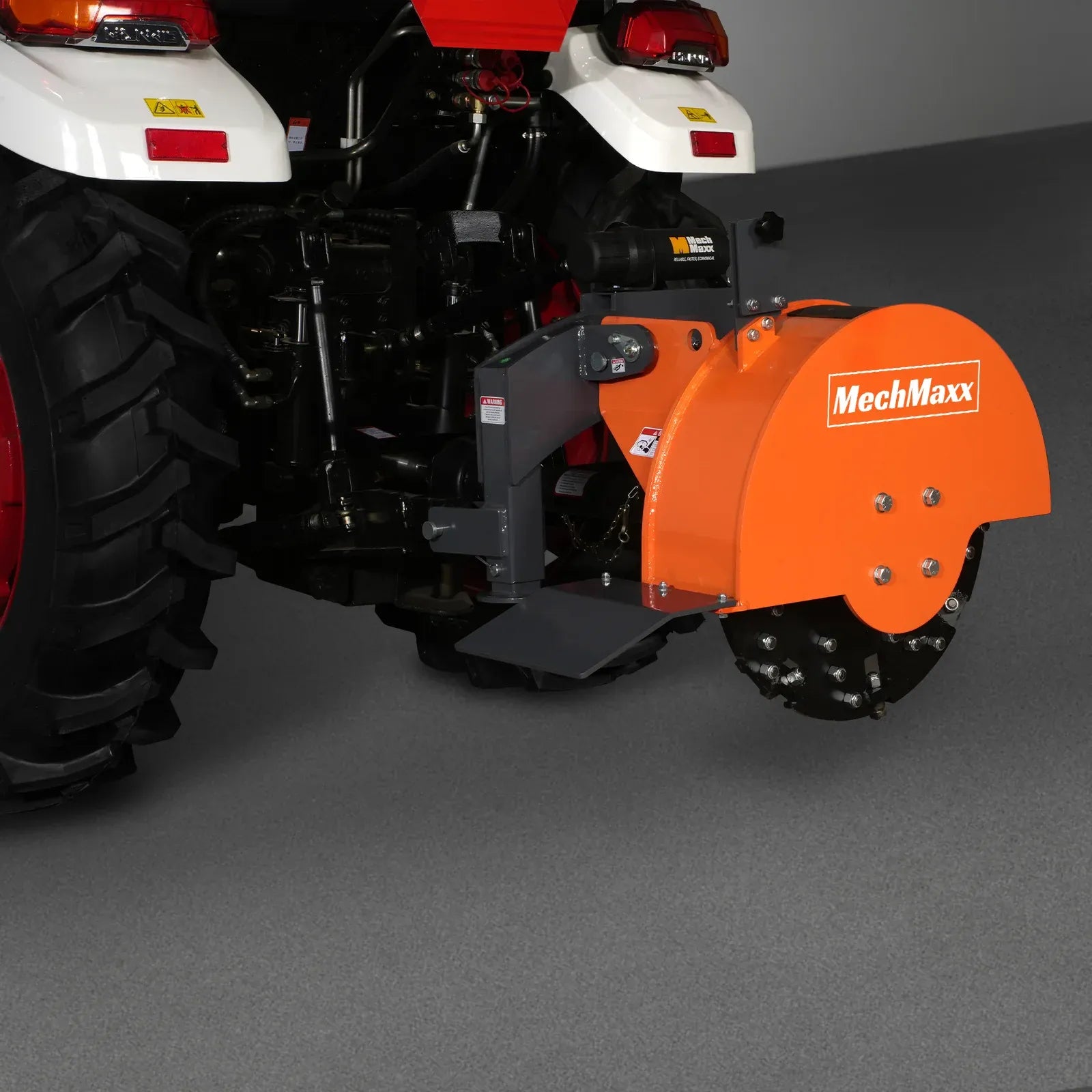

• Connects directly to your tractors 3 point hitch system and is equipped with a large 24’’ diameter solid steel grinding flywheel and 34 tungsten carbide cutting teeth to make the removal of tree stumps a breeze!
• These extremely rugged stump grinders are engineered to deliver optimal performance when paired with tractors containing 15-45HP at the PTO and will easily grind up to 6’’ below the ground to remove roots and prepare the ground for grading or grass.
• Designed to work on tractors with a PTO shaft. The stump grinder works best on tractors featuring PTO shafts that are independent of the tractors transmission drive system. This allows the operator to control the speed of the tractor independently and separately to the PTO speed.
• Since the tractor pulls the grinder through the stump, the rate at which the tractor moves is important and should be independent of the PTO shaft.
• PTO stump grinder with 34 teeth installed, plus 4 spare teeth included.

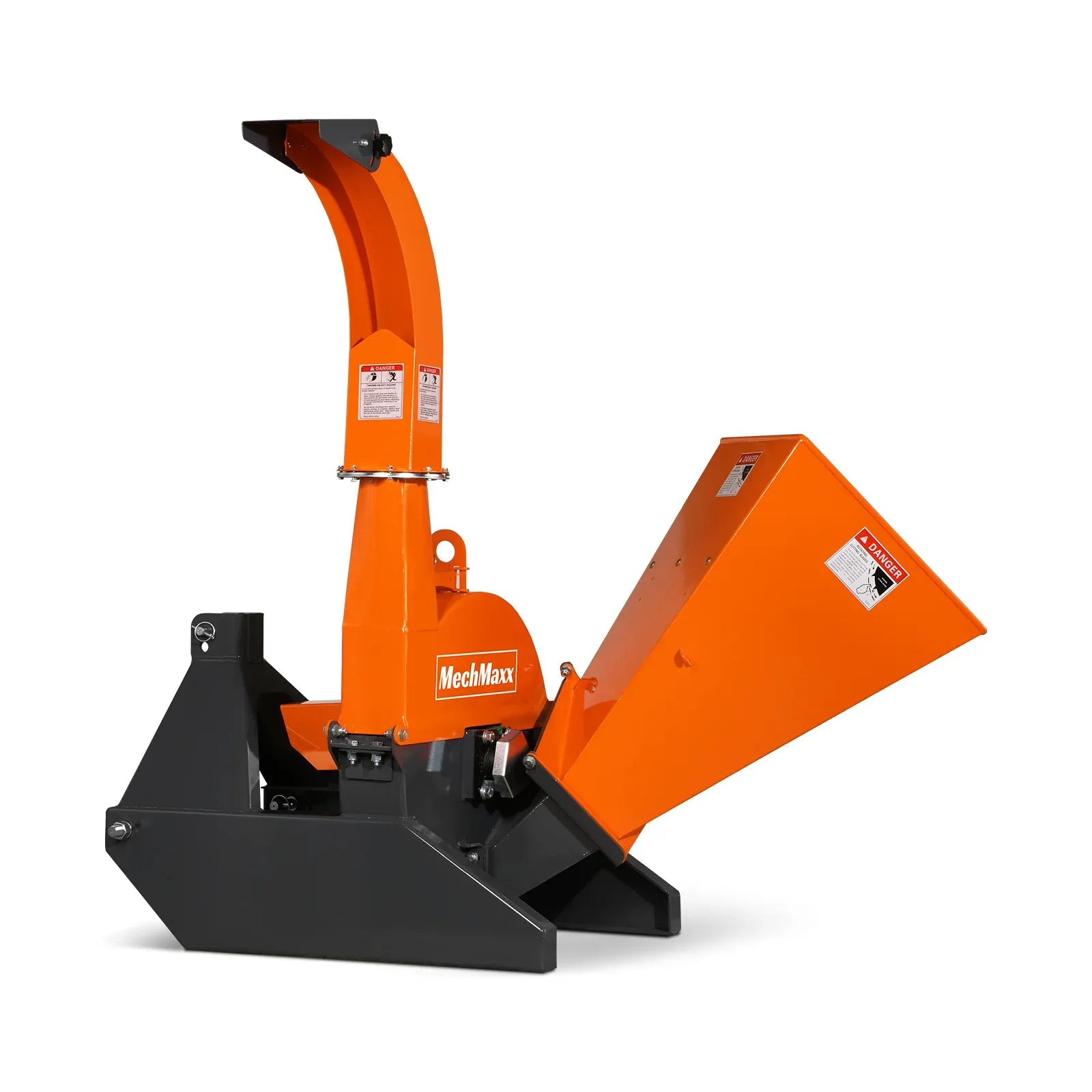

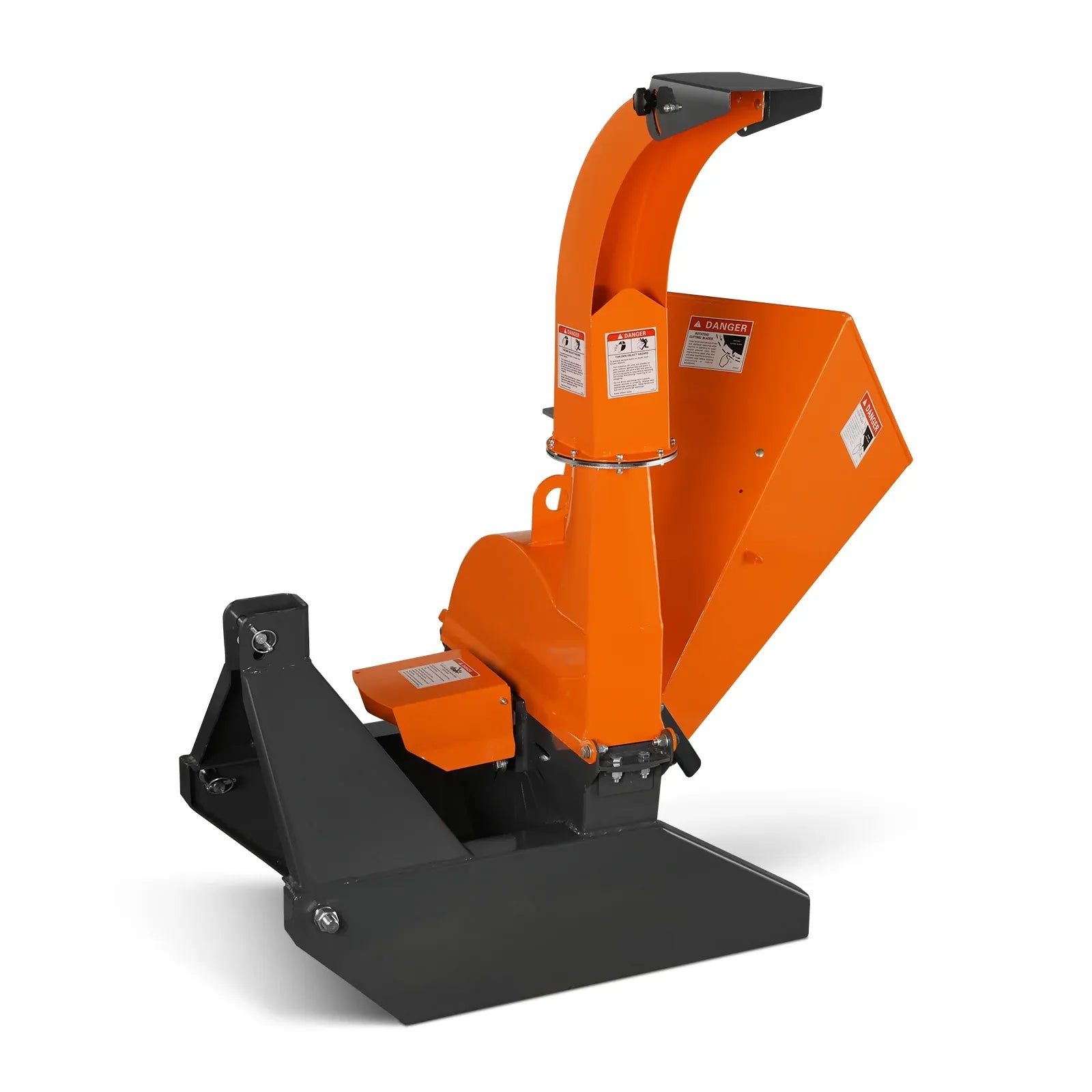

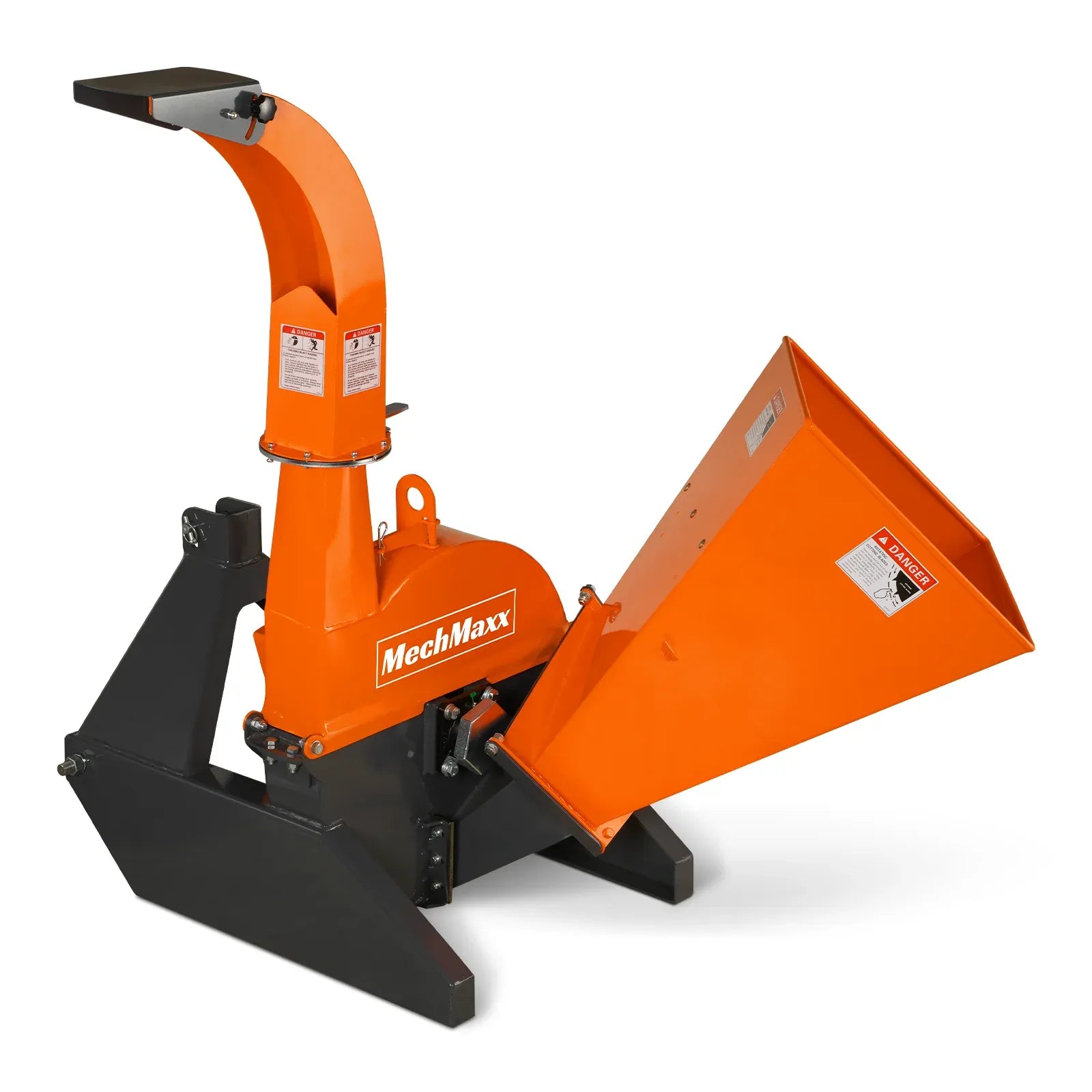

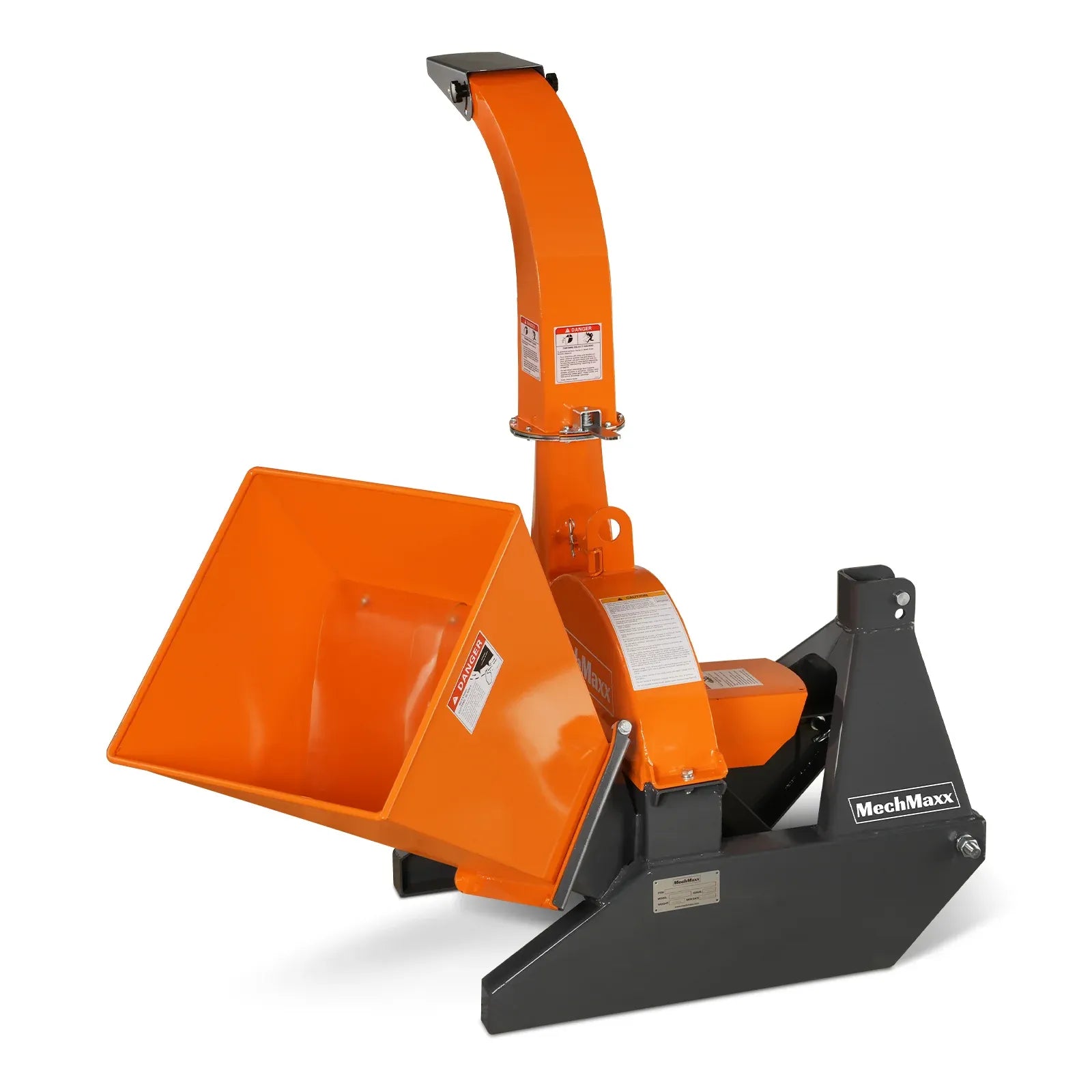

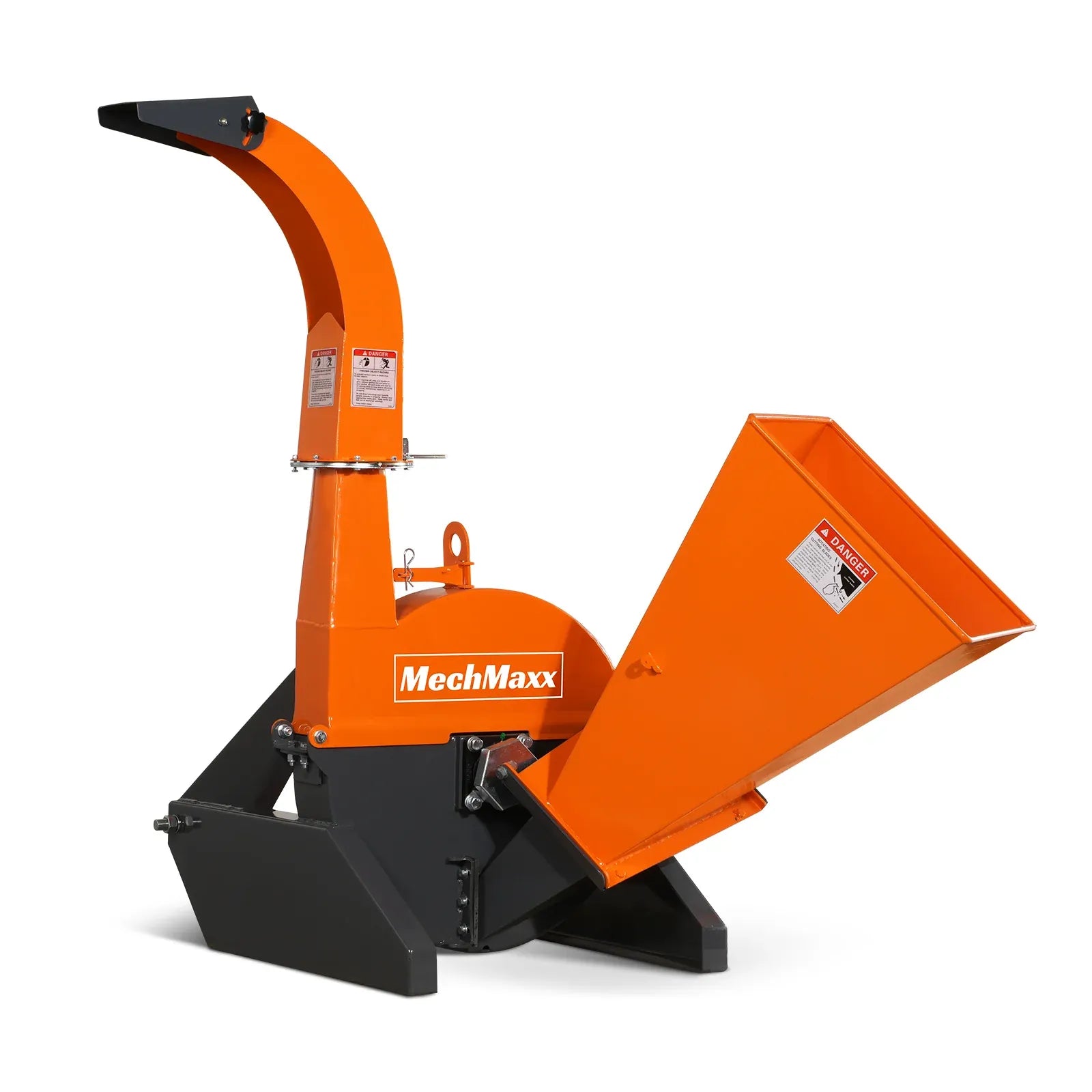

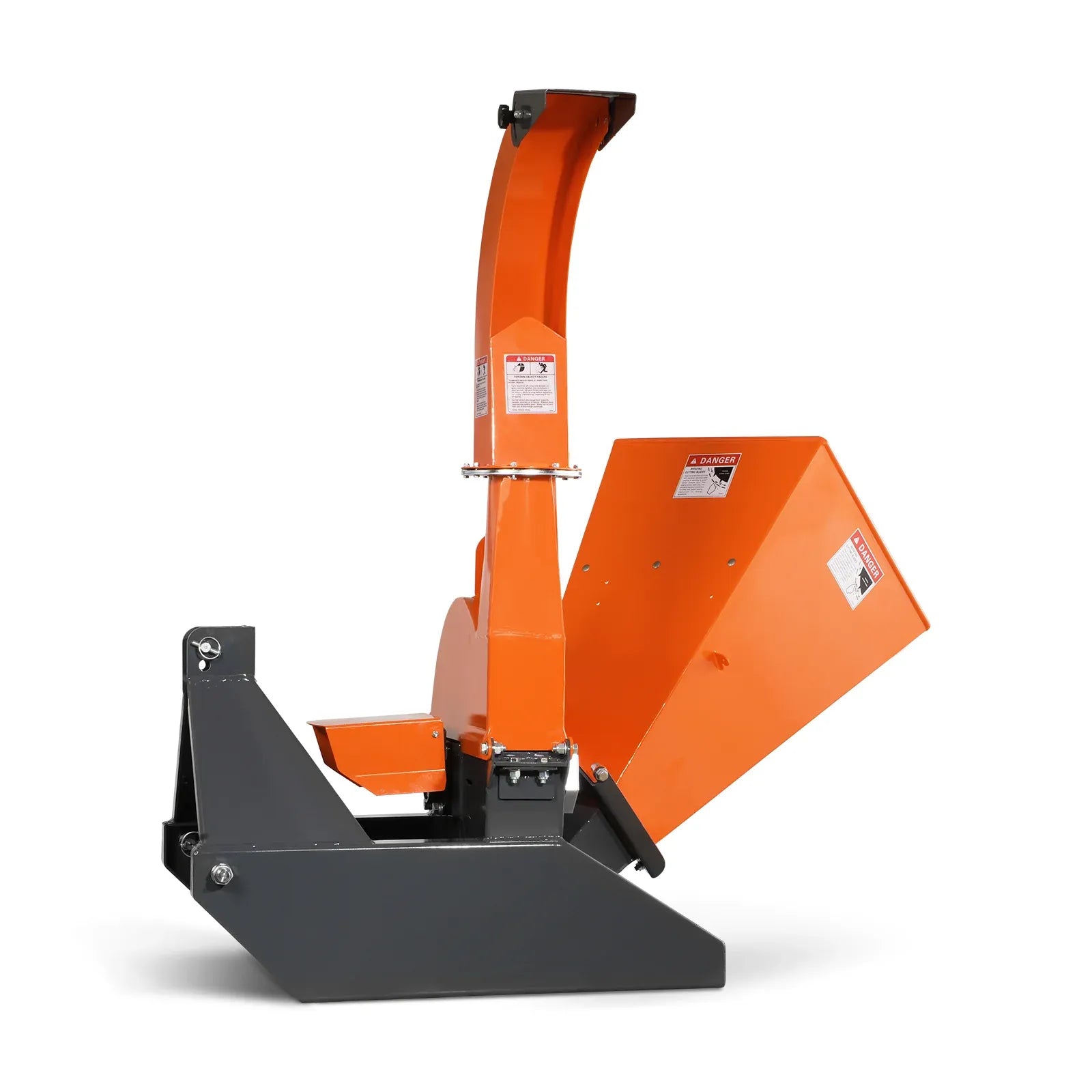

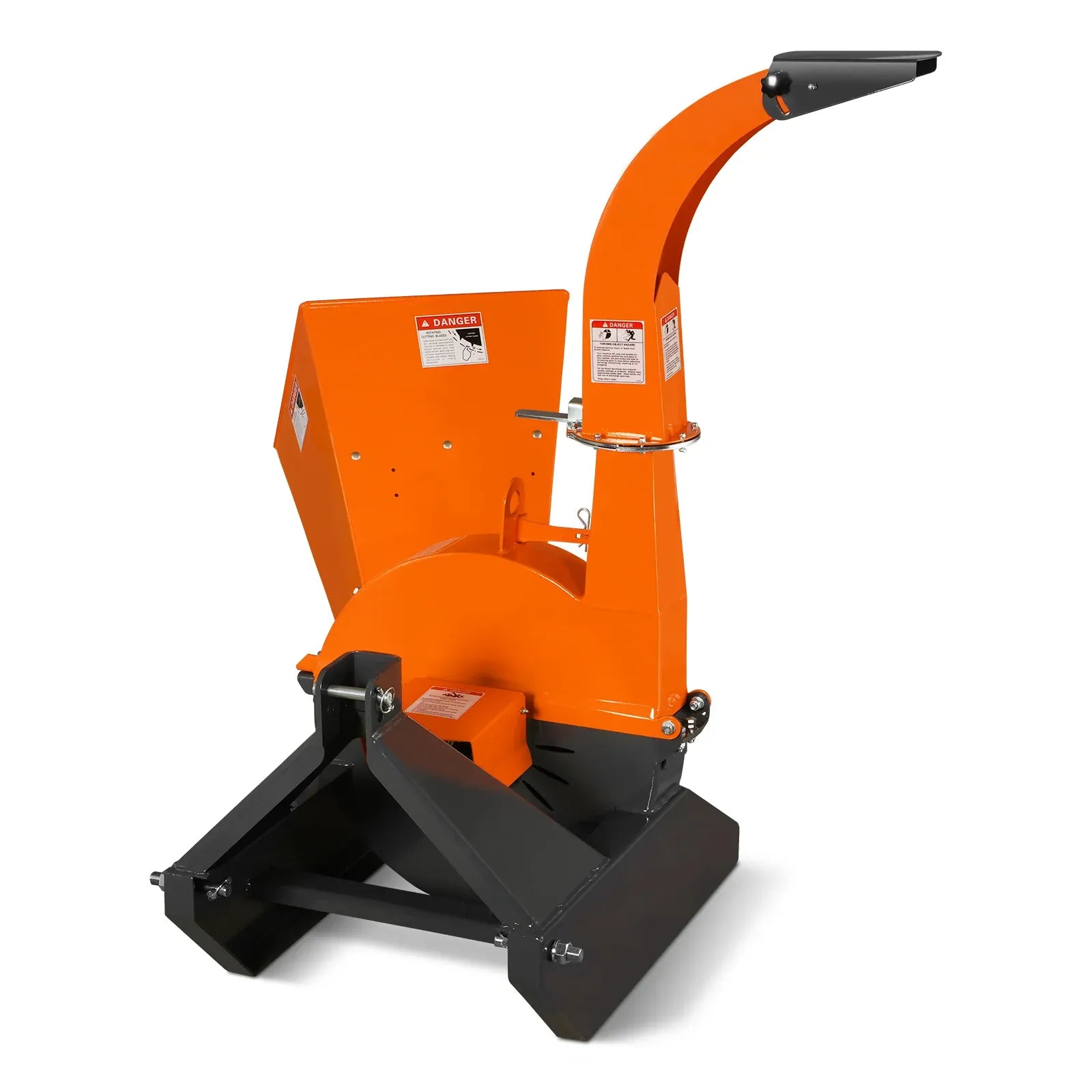

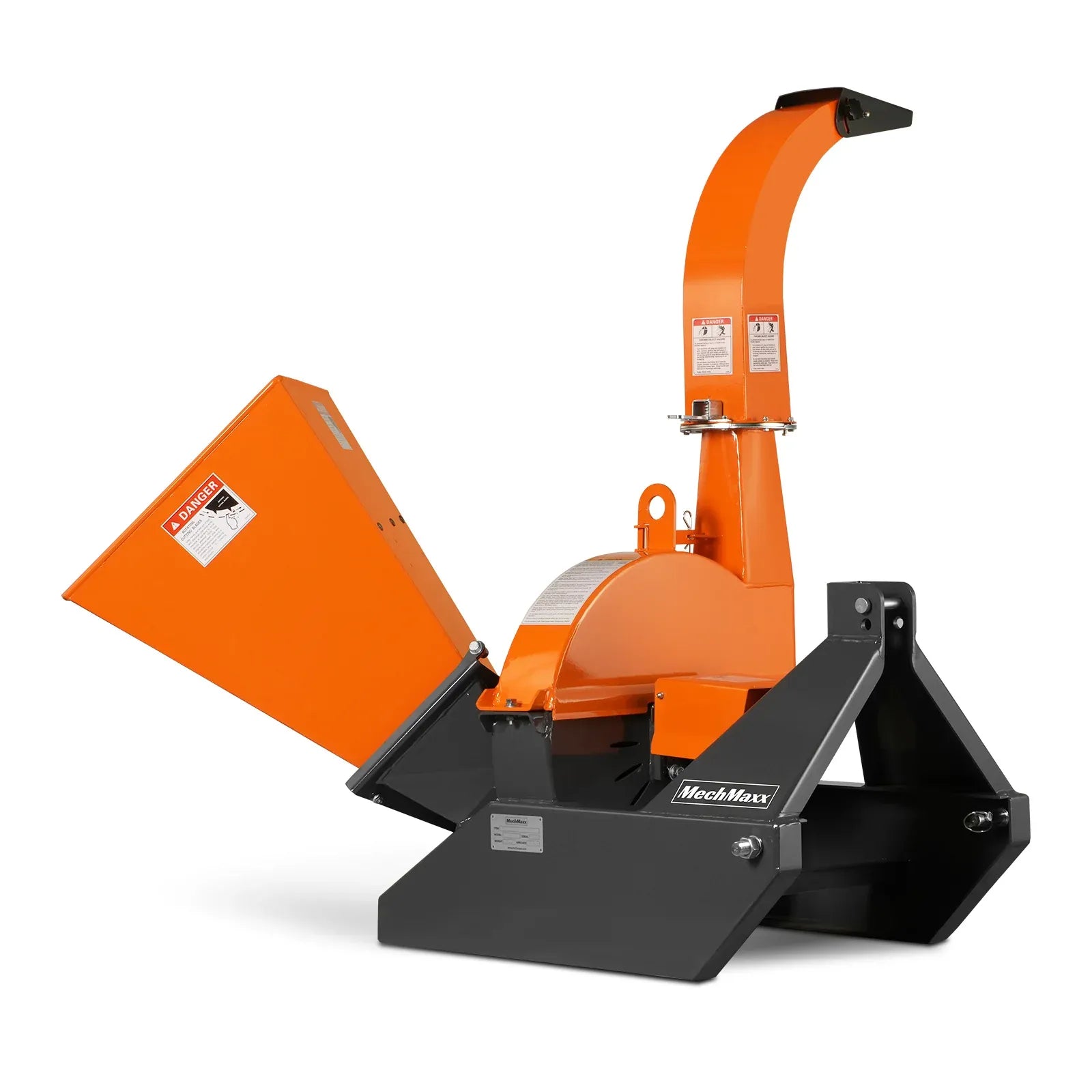

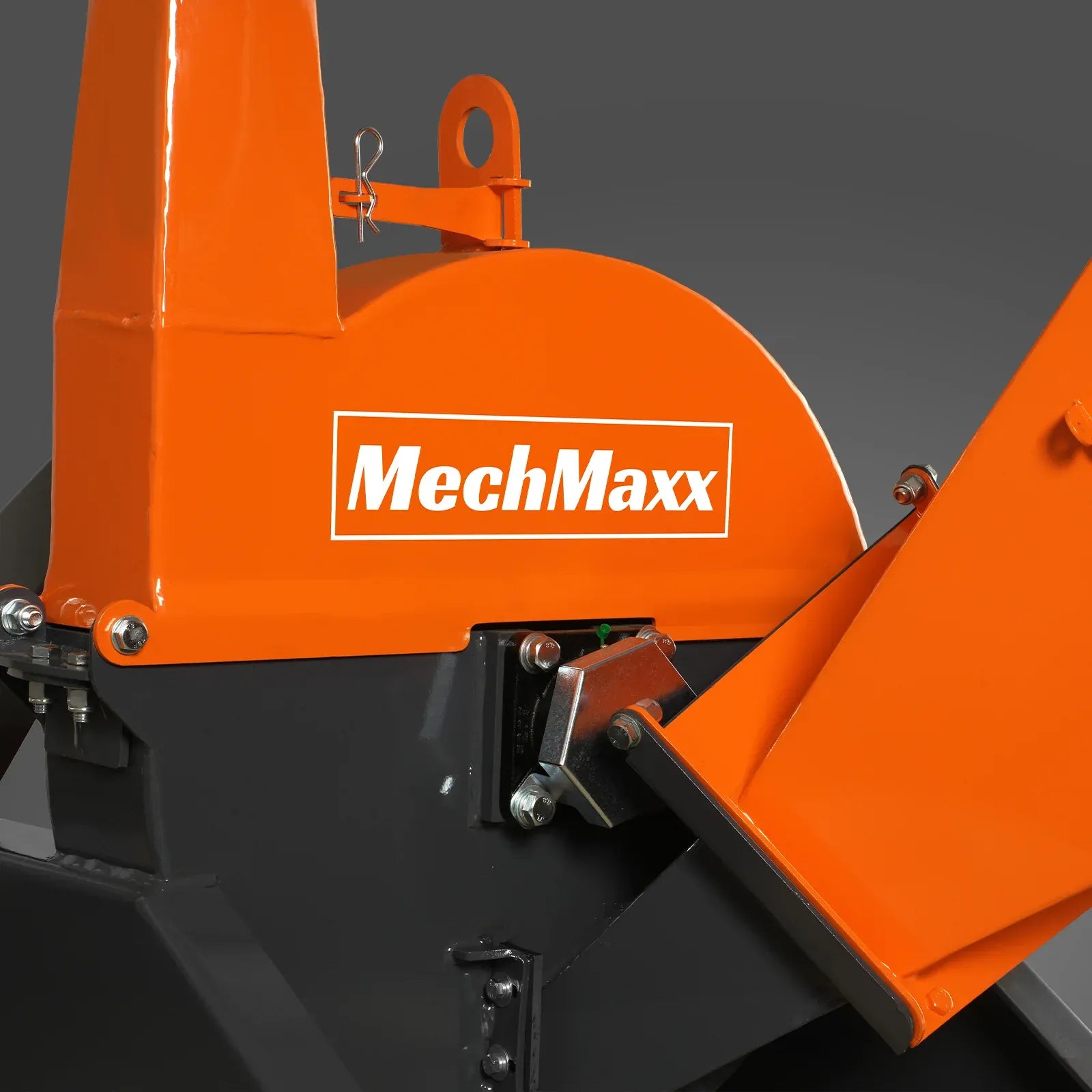

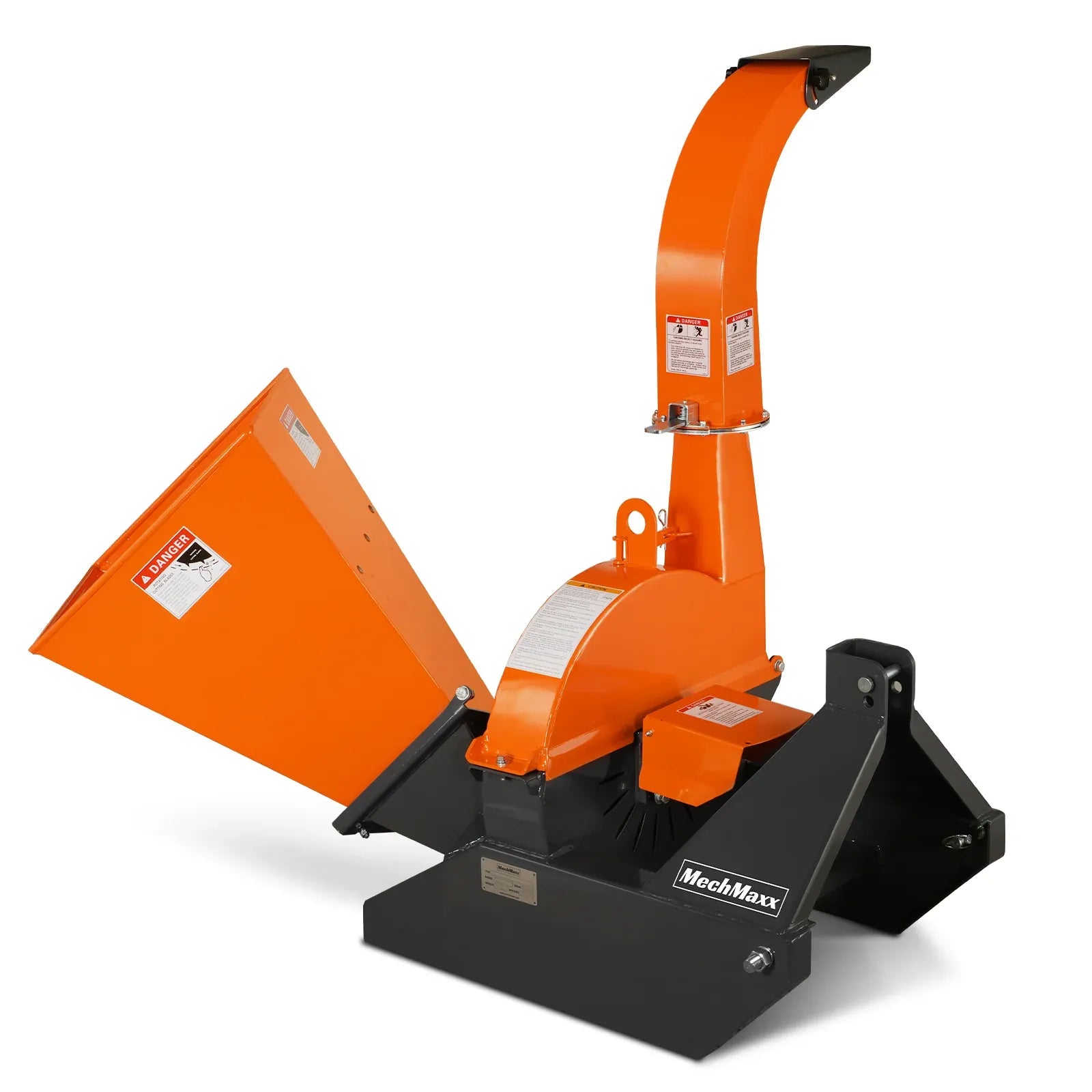

PTO Wood Chipper

• This wood chipper is constructed with heavy-duty materials to withstand demanding conditions and heavy workloads. It features a robust frame, reinforced components, and durable cutting blades, ensuring long-lasting performance and durability.
• The wood chipper offers versatile chipping capability, accepting a wide range of branch sizes and wood types. It can efficiently chip branches, limbs, brush, and even smaller trees, providing flexibility for various applications.
• The wood chipper is equipped with a self-feeding mechanism that pulls in the branches and debris, reducing the effort required from the operator. This feature enhances efficiency and productivity by automatically feeding the material into the chipper, minimizing manual labor.
• The PTO Wood Chipper is designed for easy integration with tractors equipped with a PTO system. It connects to the tractor's PTO shaft and utilizes the tractor's power to drive the chipper, eliminating the need for a separate engine or power source.
• The wood chipper is designed for ease of maintenance. It allows easy access to the cutting blades for sharpening or replacement, simplifying maintenance tasks and ensuring optimal chipping performance.

• Product Features



  24 '' Flywheel Diameter

  a large 24’’ diameter solid steel grinding flywheel This cutting-edge stump grinder features a 24-inch diameter cutting wheel, making it an indispensable tool for agricultural operations.



  34 Tungsten Carbide Cutting Teeth

  Equipped with 34 tungsten carbide cutting teeth that sharpen stumps quickly, speeding up work and making stump removal a breeze.

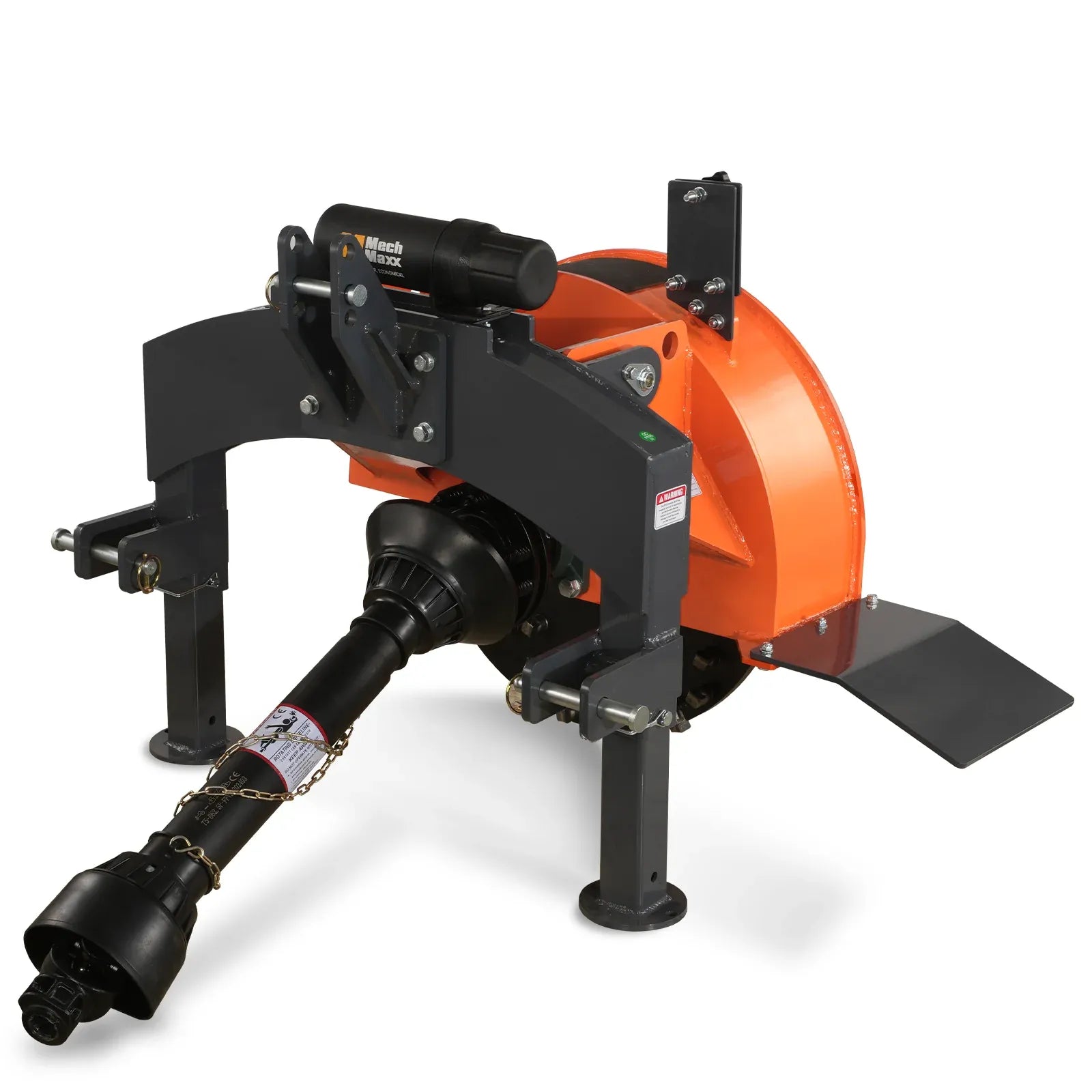

  PTO Shaft

  1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch. Compatible with reliable 540 rpm dedicated PTO drive power supply, ensuring efficiency and stable performance.



  PTO Required

  Extremely sturdy stump grinder engineered to provide optimal performance when used with tractors with PTO power of 15-45HP.

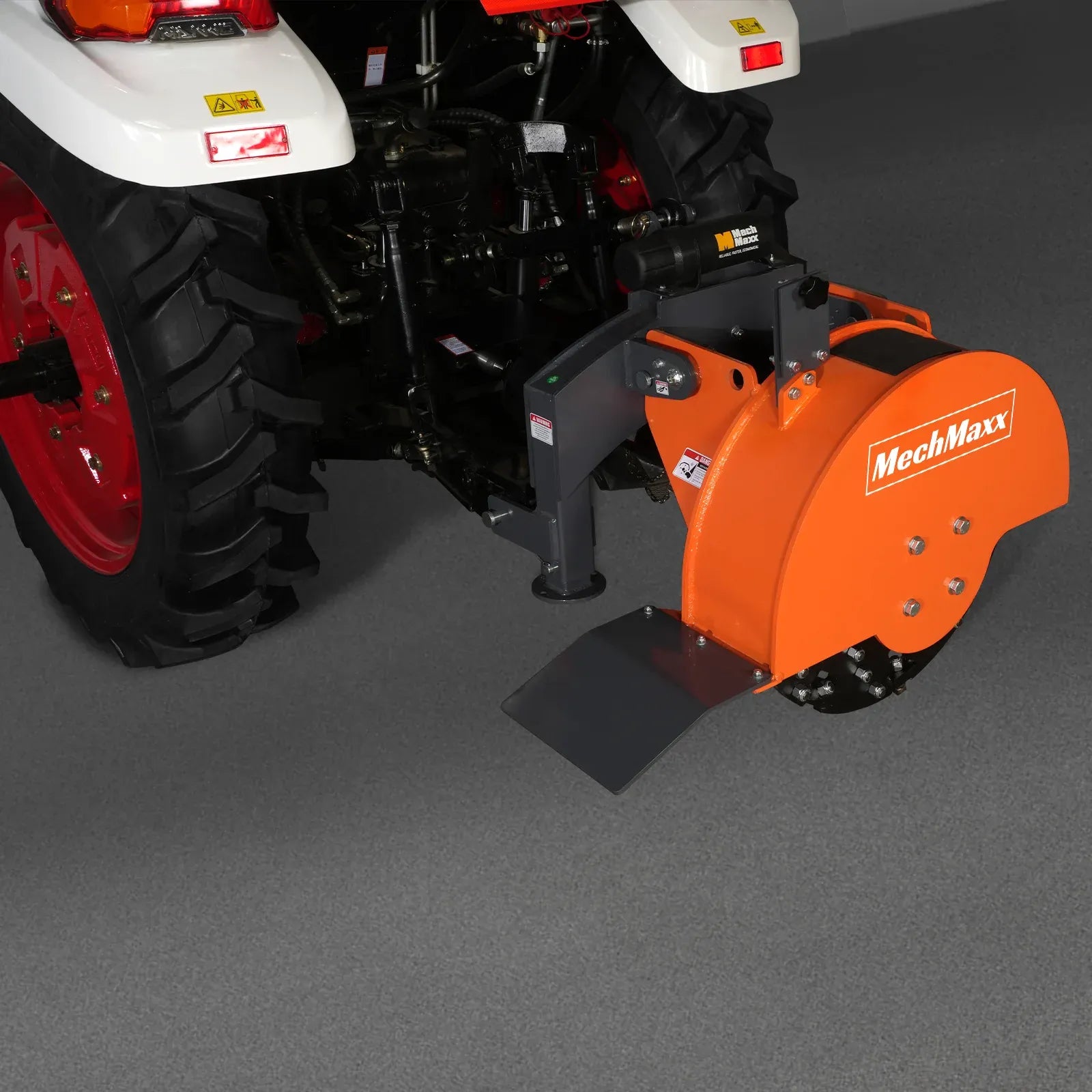

  3 point hitch Cat. 1

  The three-point connection ensures the stability of the root grinder connected to the tractor and remains stable when the machine is running, improving grinding efficiency and reducing working time.



  Cutting Depth

  Easily grinds underground to a depth of 6 inches to remove tree roots and prepare for grading or lawn.



  Tractor Power

  BX42s is suitable for most tractors, with a minimum of 18HP and a maximum of 45HP.

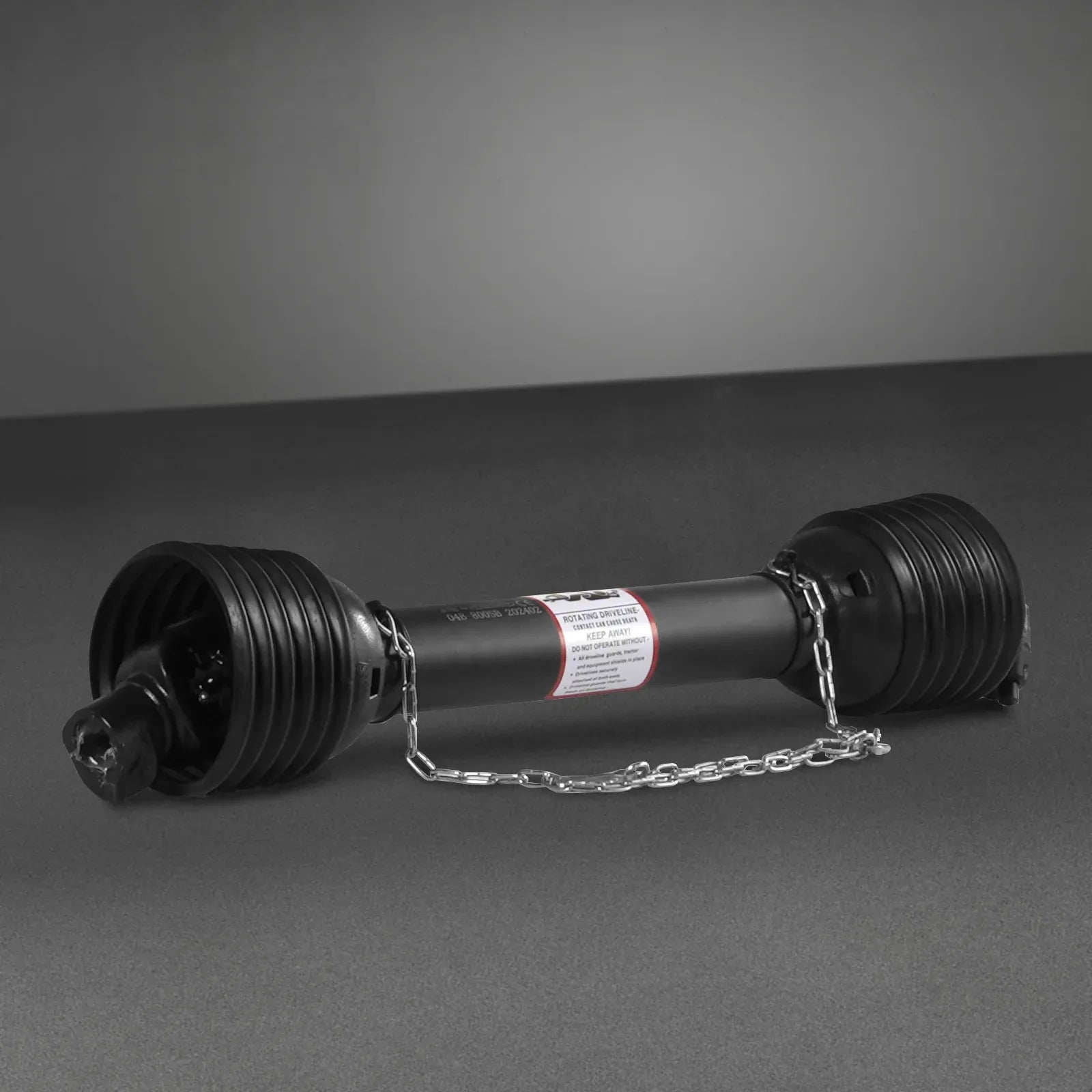

  PTO Shaft

  1-3/8” 6 Spline Tractor and Implement Ends. Included PTO shaft for Category 1 hookups make this chipper compatible with most tractor makes and models. Model:T5-LF-31 in with shear bolt ,31.5-43 in

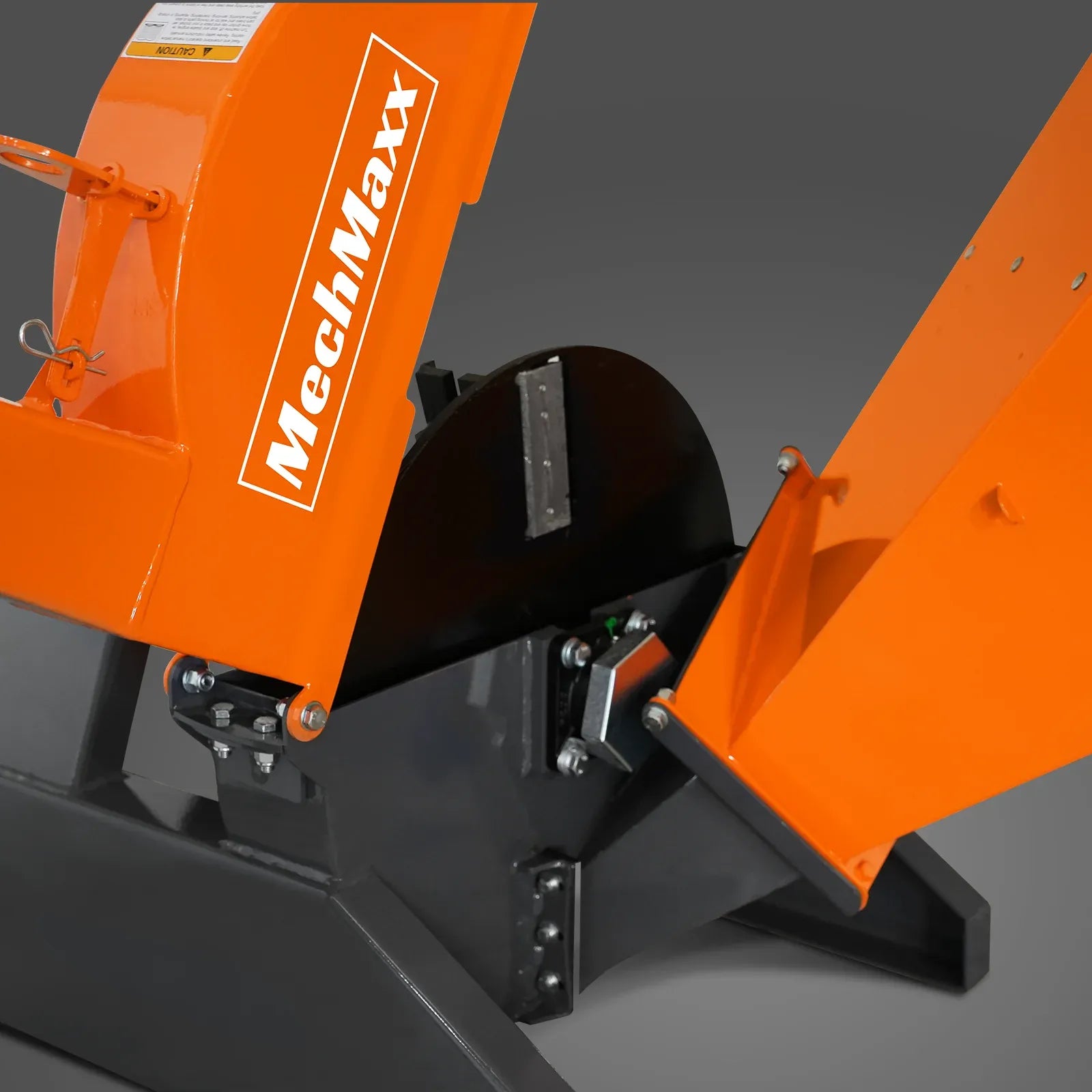

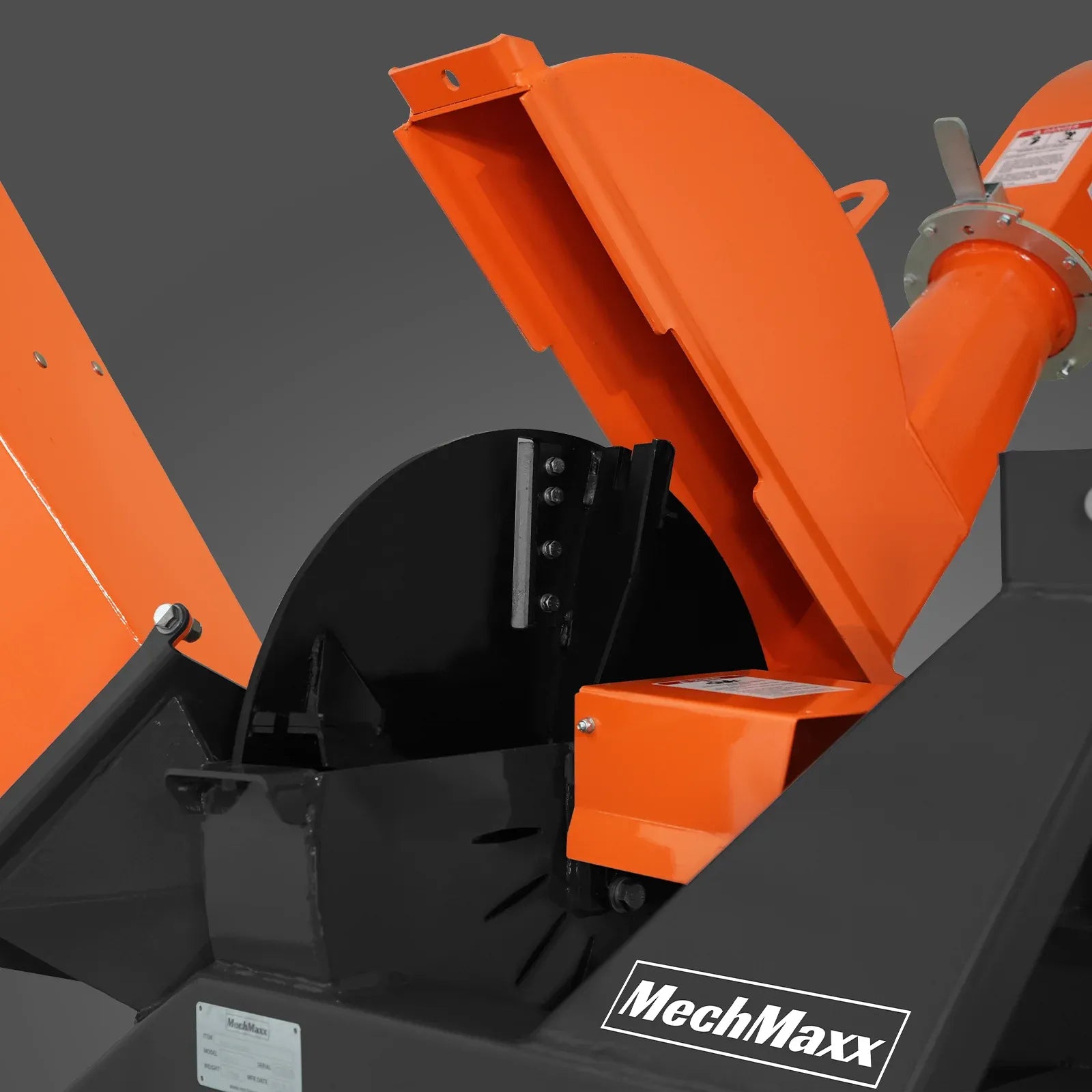

  Cutter

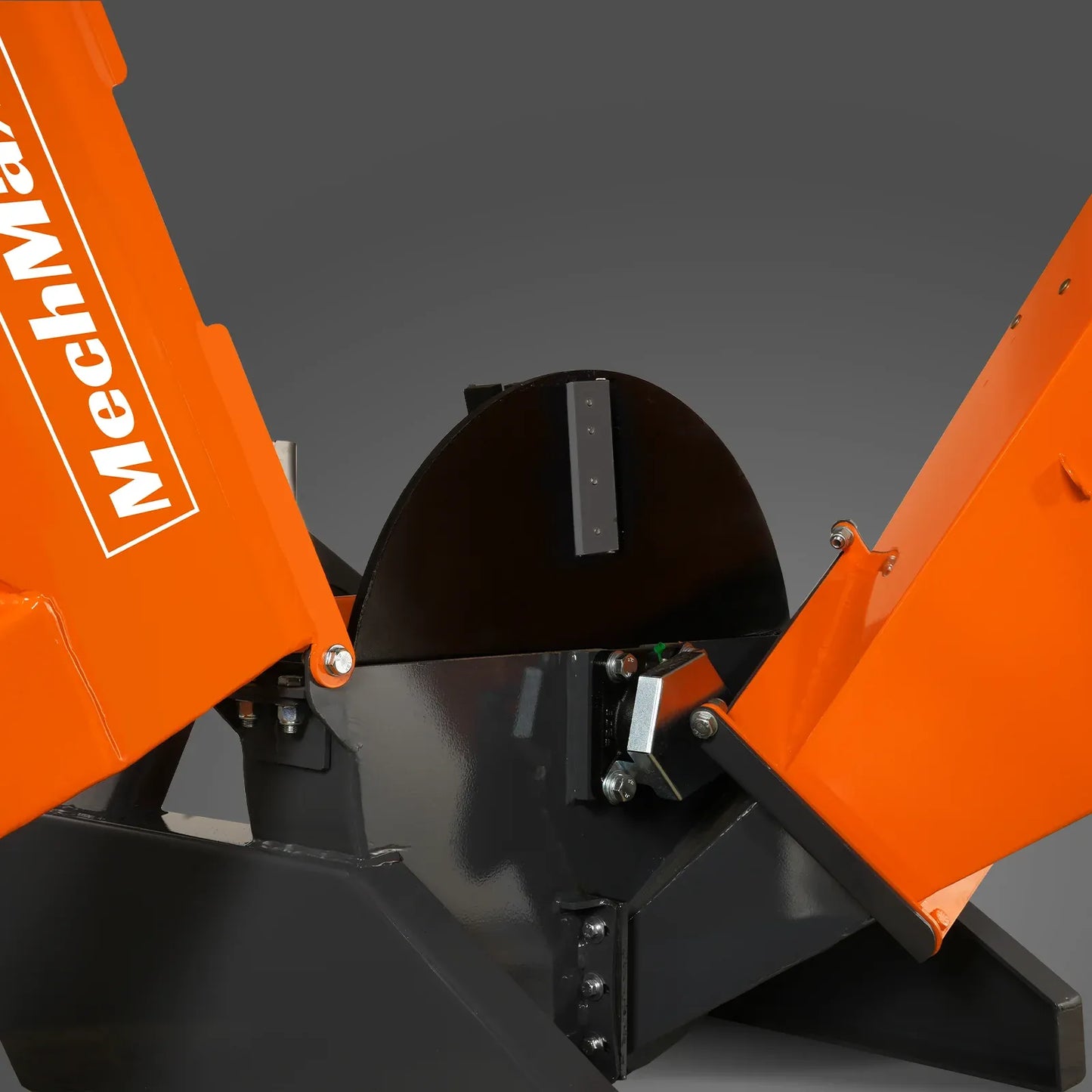

  The core cutting component of the BX42S Wood Chipper is a disc. Easy to disassemble for quick blade replacement.



  3 Point Hitch

  The three-point connection ensures the stability of the root grinder connected to the tractor and remains stable when the machine is running, improving grinding efficiency and reducing working time.



  Maximum Wood Chip Diameter 4’’

  BX42S provides maximum cutting force to effortlessly cut branches with a maximum diameter of 4’’.



  Discharge Chute

  The top of the discharge chute can rotate 360 degrees. Easy to disassemble for quick blade replacement.

  Specifications

  PTO Stump Grinder

  Flywheel Diameter	24 in	Mounting	3 point hitch Cat. 1 (Quick attach compatible)
  Flywheel Thickness	3/4 in	PTO Input	540 RPM
  Carbid Tip	34 pcs	Max. Torque	1200Nm
  Carbid Tip Material	YG11C	PTO Shaft Weight	44 lbs
  Tip Holder Material	42CrMo	Dimensions	29 x 37x 38 in
  PTO HP Required	15–45 HP	Packing	Iron frame + Carton
  PTO Shaft (Included Shipping)	1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch	Weight (N.W/G.W.)	450/563 lbs
  Friction Torque Limiter (Slip Clutch)	Included



  PTO Wood Chipper

  Tractor Power	18-45HP	Blade (Tines) Material	4CrW2Si
  Max. Throughput Capacity	4 in	PTO Shaft RPM	540 RPM
  Infeed Opening	4*10 in	Flywheel Speed	540 RPM
  lnfeed Chute Opening	20*20 in	Drive Type	PTO
  Feeding Opening	Gravity Feed	Driveline Shaft Length	T5-LF-31 in with shear bolt, 31.5-43 in
  Discharge Chute Rotation	360 Degrees	3-Point Hitch	CAT 1
  Rotor Diameter	25 in	Dimensions (L x Wx H)	38x 33x 43 in
  Rotor Thickness	0.5 in	Finsh	Powder Coat Paint Galvanized Steel
  Rotor Weight	82 lbs	Warranty	1 year
  Number Of Blades	4+1	Net Weight	397 lbs
  Blade Weight	0.9 lbs	Gross Weight	441 lbs
